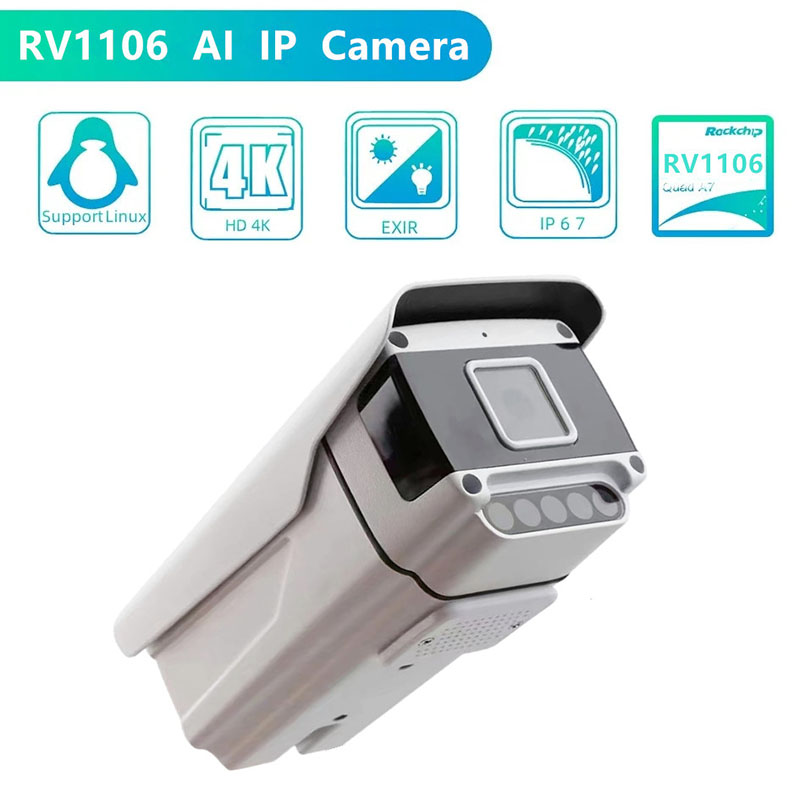

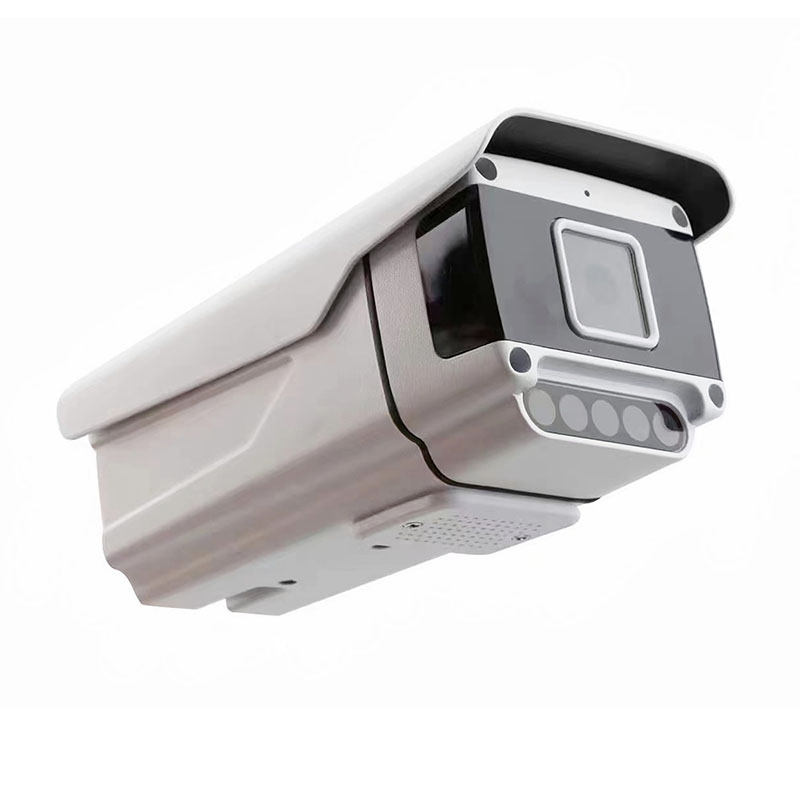

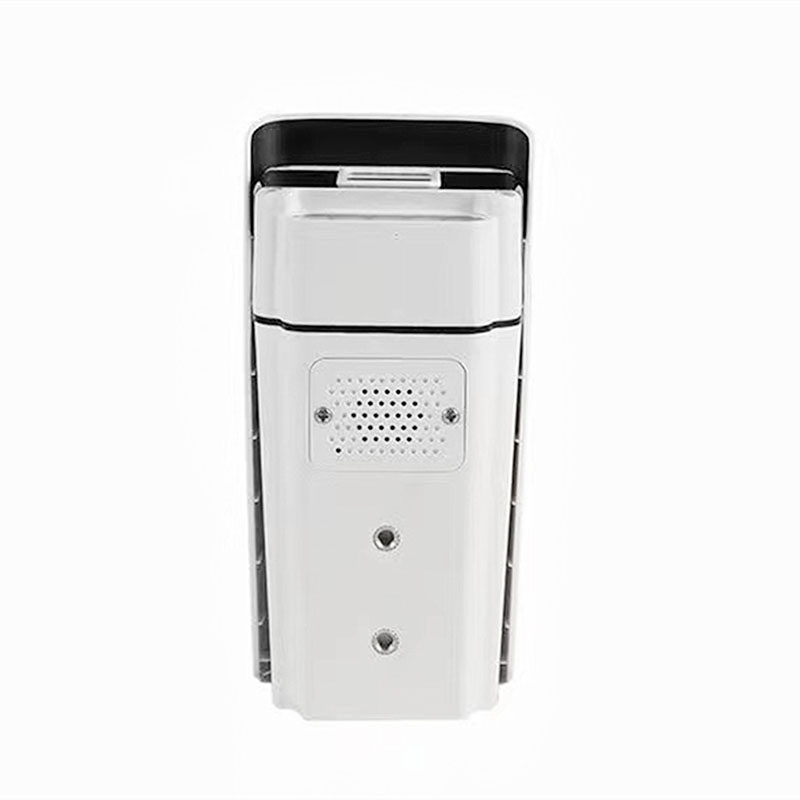

„RockChip RV1106 HD 5MP IP PTZ CCTV“ kamera

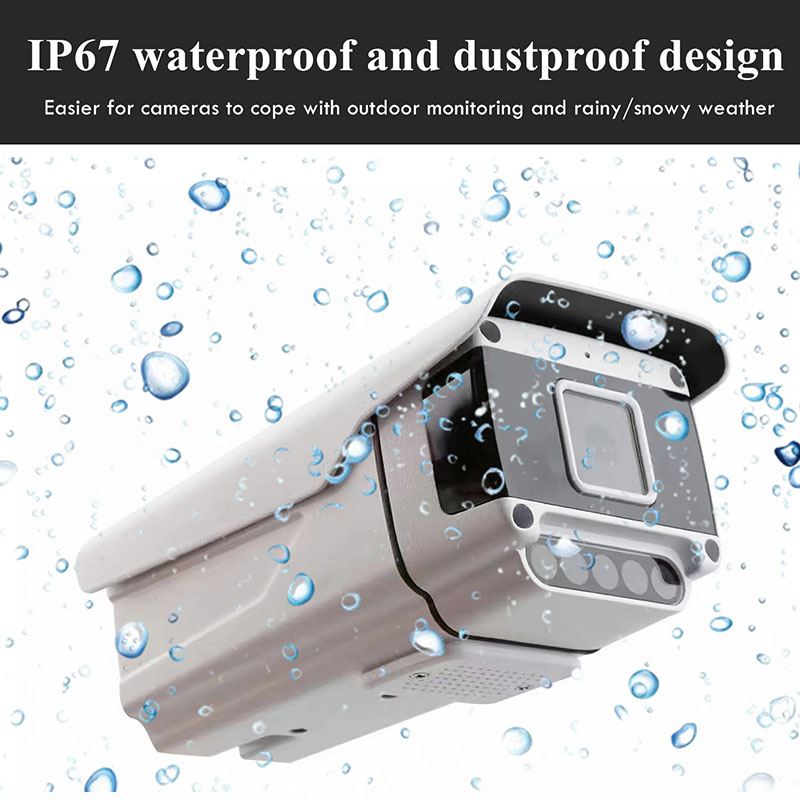

„Rockchip RV1106 HD 5MP IP PTZ CCTV“ kamera priima „Rockchip“ mažos galios AI vaizdinį procesorių RV1106500W pikselių aukštos raiškos vaizdo kokybė, aukštas dinaminis HDR HDR H.265 Daugiakanalis kodavimas ir dekodavimas, mažos latencijos ir mažos proporcijos, IP67 atsparus vandeniui ir dulkių atsparus dizainas, AI skaičiavimo galia 0,5t. Funkcija, platūs programų scenarijai, atviri duomenys ir pritaikymas savarankiškai.

Siųsti užklausą

Prekės aprašymas

Rockchip RV1106 HD 5MP IP PTZ CCTV Camera Product features:

1. RV1106 adopts Cortex-A7 CPU and high-performance MCU, with built-in Rockchip 4th generation NPU, up to 1TOPs computing power, supporting mixed quantization of int4, in8, and int16, with int8 computing power of 0.5TOPs and int4 computing power of 1.0TOPs.

2. RV1106 adopts Rockchip third-generation ISP3.2, which supports 5 million and 4 million pixels respectively. It supports various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction. In various complex lighting scenes, it can achieve clear and visible black light full-color and backlight strong light shooting effects. RV1106 supports 2-3 MIPI/DVP inputs.

3. RV1106 has super strong encoding performance, supports intelligent encoding, adaptively saves bitstream according to the scene, and saves over 50% bit rate compared to conventional CBR mode, making the captured images high-definition, small in size, and double the storage space. It also supports rich encoding functions, such as frame skipping reference, custom quantization matrix, subjective factors, etc., to further improve encoding quality.

4. RV1106 adopts an intelligent audio solution that supports echo cancellation, speech noise reduction, crying detection, abnormal sound detection, etc. It also supports high-definition speech, enhances sound acquisition, and long-distance pickup.

Rockchip RV1106 HD 5MP IP PTZ CCTV Camera Parameters
CPU	Rockchip RV1106 Quad-core A7，14nm，1.5GHz
RAM	Built-in 1Gb to 2Gb DDR3L
ROM	2Gb NAND Flash，support NOR Flash
NPU	0.5TOPS, supports RKNN AI framework, and can implement common AI framework model transformation (caffe, darknet, mxnet, onnx, pytorch, tensorflow, tflite) and algorithm support
Sensor	5 million SC530AI monocular Sensor
CSI	4 Lane MIPI CSI supports 5 million @25fps and supports access to a maximum of 3 sensors
DSI	NA
WIFI	SDIO WIFI，IEEE 802.11b/g/n
4G	USB 4G module, support CAT4, CAT1 and other mainstream brand modules
Ethernet port	Adaptive 10/100Mbps 100 megabits, supporting MDIX functions
USB	OTG2.0 X1
MIC	Simulate omnidirectional MIC
SPK	Independent external Audio Coder, pickup and Speak, with 3W power amplifier, Line out is not supported
Photodetector	Optional (ISP induction night function)
Reflector	Expandable LED fill light board supports white light /IR infrared fill light
ISP	The third generation of the ISP, 5 (2 f HDR / 3 NDR/WDR/BLC/DPCC/PDAF/LSC
Encoder	H.264/265 5M30FPS，5M@60FPS JPEG snapshot，Six bit rate control modes (CBR, VBR, FIXQP, AVBR, QPMAP, and CVBR)
System support	Linux (Support fast startup, first frame valid frame out time < 150ms)
Operating temperature	-20℃~70℃
Support platform	MCU、ARM、Windows、Linux、Android
